This kind of motor is widely used in polisher, burnisher and glass machinery manufacturing companies.
Description
Slip ring motors or also called wound rotor motors are the heart in a lot of drive applications in the high power range. They are most commonly used in the raw material industry like mining of ore and minerals or in the binders industry like cement, limestone and gypsum in diverse technologies of crushers, roller presses and mills but also in large fans, pumps and conveyors.

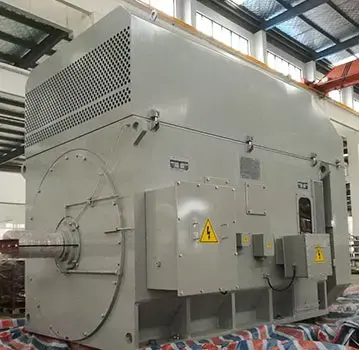

Standard design of Air-air cooling Slip ring motor (IC 611, IC 616, and IC 666)
l Construction types: IM B3, V1
l Protection classes: IP55, optionally IP65
l Voltage: from 230 V to 13,800 V
l Shaft height: from 100 to 900
l Terminal boxes: right or left, rotatable by 4 x 90°
l Motor housing: of welded steel with integrated footplates
l Thermal utilization: according to B or F Insulation class F, optionally H
kinchi motors specializes in special customized designs of Air-air cooling Slip ring motor for industrial application worldwide.
The advantages of Air-air cooling Slip ring motor
l Very high starting torque, two to three times nominal torque
l Low starting current at start, no or marginal higher than nominal current
l No limited acceleration time and number of starts
l No or very low torque impulses during start depending on starter technology
l High efficiency during continuous operation (no converter losses)
l No special environmental conditions
l No harmonic distortions
l No EMI measures necessary, no need of shielded connection cable
Applications of Air-air cooling Slip ring motor
l Cement industry
l Food industry
l Process industry
l Power plants
l Paper industry
l Water and wastewater management
l Steel industry
l Raw material extraction and materials handling
l Slip ring motors in the IC 611, IC 616, and IC 666 cooling classes are suitable for:
l Mill drives
l Refiner drives
l Shredder drive
l Compressor and compactor drives
l Fan drives
l Conveyor drives
Air-air cooling Slip ring motor IC611 Electrical performance data
Air-air cooling Slip ring motor IC611 Mechanical dimension data

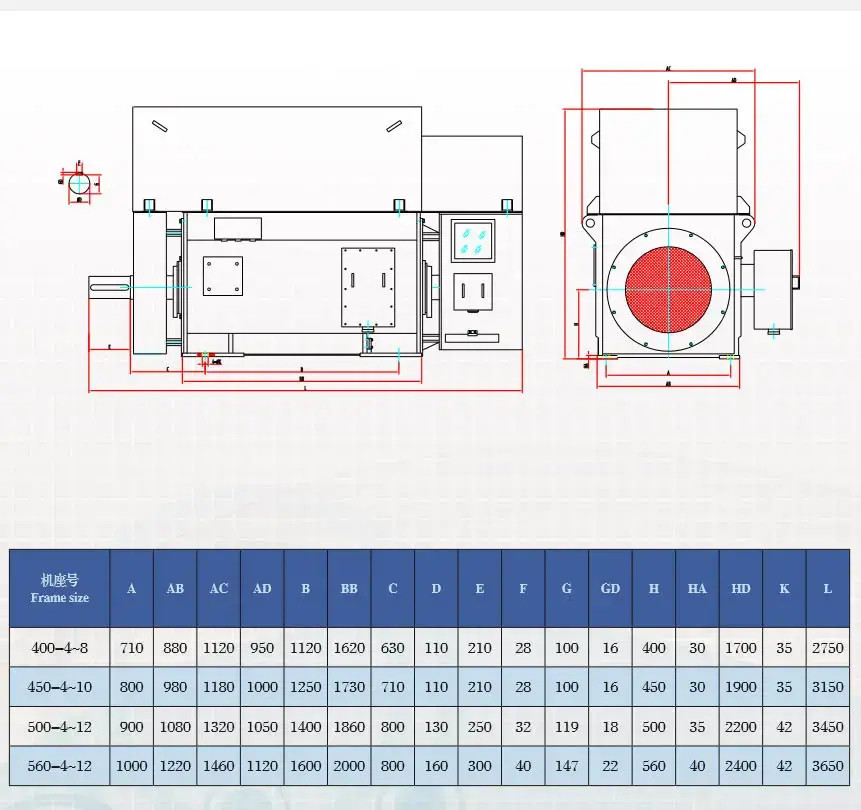

●YR Series （6000V）IP23 High Voltage 3-phase Asyn. Motors.（H355-560mm）Out line Diagram.

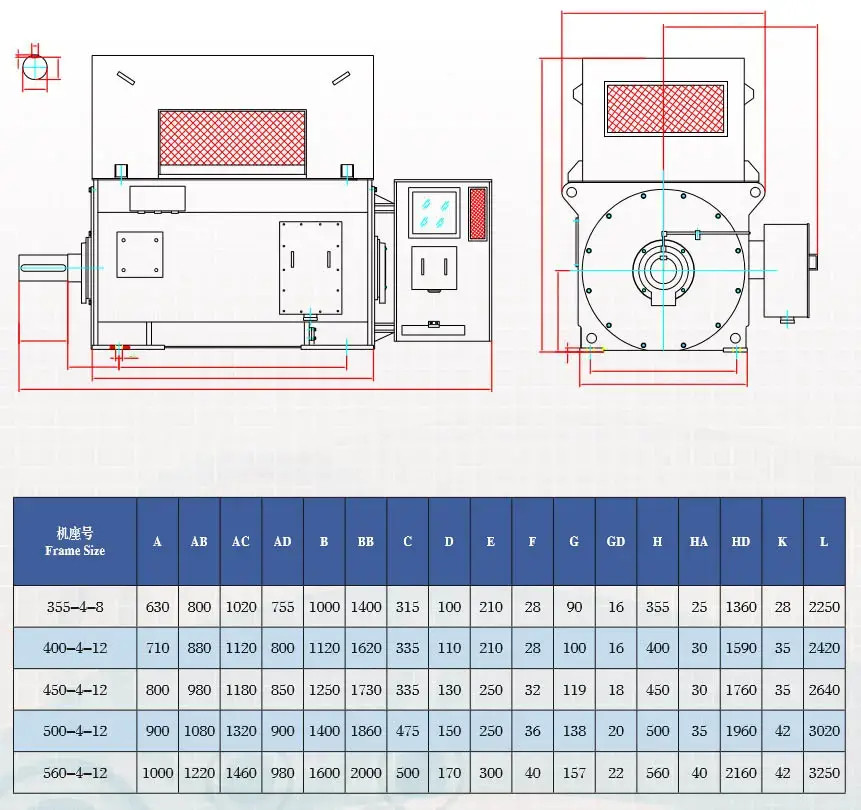

●YRKK Series （6000V）Totally enclosed Air-Air cooling IP44/IP54 High Voltage 3-phase Asyn. Motors.（H355-560mm）Out line Diagram.

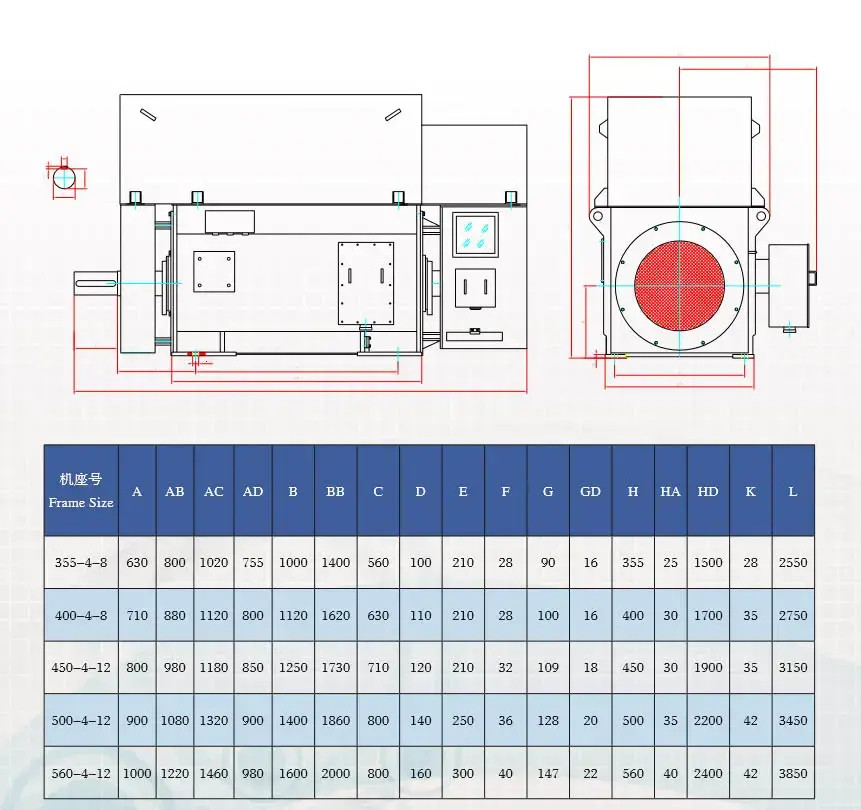

●YR Series （10000V）IP23 High Voltage 3-phase Asyn. Motors.（H355-560mm）Out line Drawings.

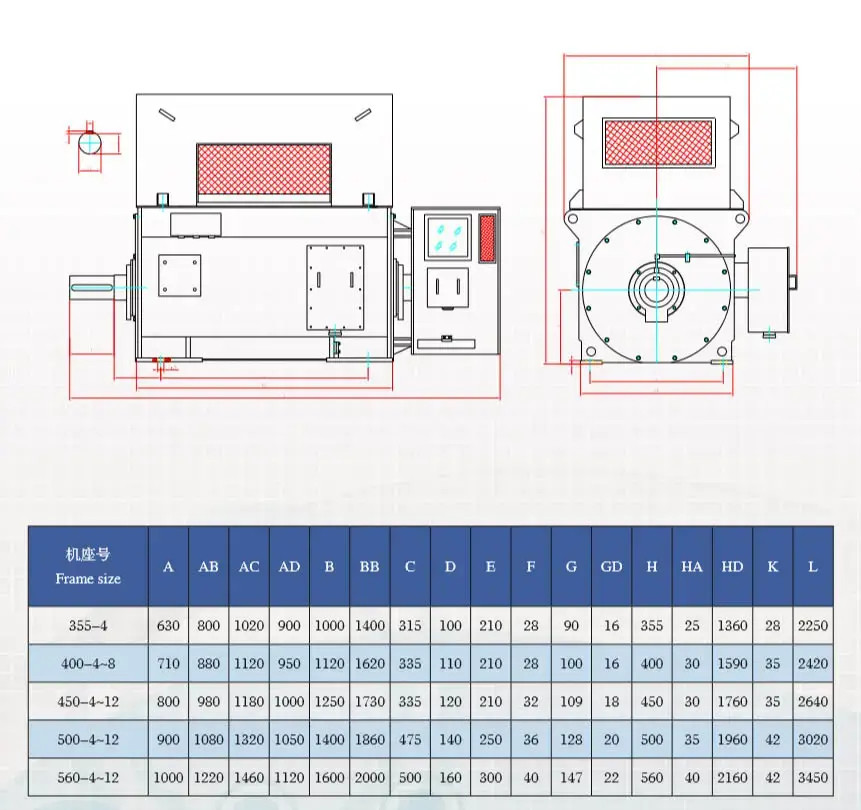

●YRKK Series （10000V）Totally enclosed Air-Air cooling IP44/IP54 High Voltage 3-phase Asyn. Motors.（H355-560mm）Out line Drawings.
